Boomerang ATOM Squared Matt Chapman Livery

The Atom Squared is a fully composite 3D sport jet with amazing features!  Quick release wings, stabs and vertical fin, thumb screws to split the fuselage right behind the turbine, hidden linkages on the ailerons and flaps and a massive hatch providing easy access to everything in the fuselage.

The ATOM Squared is capable of everything from F3S aerobatics to 3D hardcore Flips, spins, tumbles and hovering with the use of the thrust vectoring unit.  Drop the flaps and let the ATOM Squared float through the air making landing easy and predictable.  The Carbon fiber wing tube provides a solid and stiff wing spar allowing you to pull and push while flying extremely!

The ATOM Squared comes with the electric landing gear and brakes with brake controller as well as gear door sequencer, composite fuel tank with fittings, carbon fiber wing tube, composite fuel tank, and pre-installed quick releases on the wings, stabs and vertical fin, the gear doors are pre-installed and thrust tube with optional thrust vector unit.

The ATOM Squared will fly with anything from a 200-300 size turbine, for normal non vectoring flying we recommend the 200-250 size turbine, for hovering we recommend going up to the 300.

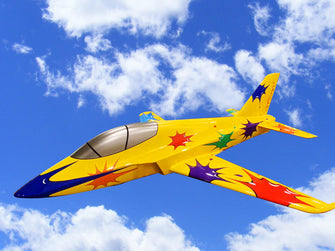

We worked closely with Top Airshow performer Matt Chapman on getting every detail of his unique livery from his Cap 580 translated to work on our ATOM Squared.  The Yellow with paint ball splatters all over, the Target on the belly and the font and logo for the ATOM Squared on the rudder.  Thank you, Matt!!

Specs:

Includes:

(1)   Complete ATOM Squared Airframe

(1)   Composite Fuel Tank

(1)   Landing gear and brake set

·       Brake controller and nose gyro

·       Gear controller and Gear Door Sequencer

(1)   Thrust tube

(1)   Vector Unit

(1)   Hardware package

(1)   Carbon Fiber Wing Tube

Requires:

·       9ch or more radio

·       9ch or more receiver

·       7x Standard High Torque Servos, 9x if using Thrust Vectoring

o   We suggest TORQ BLS3813A

·       4x Mini High Torque Servos for nose wheel steering and gear doors

o   We suggest TORQ CL1810A

·       9x 30mm servo arms (distance from the servo screw to the hole)

o   Used for Flaps, Elevators, Rudder, Vectoring, Main Gear Doors

·       4x 20mm servo arms

o   Ailerons, nose gear door, nose steering

·       Turbine

·       Batteries for radio and turbines
