TORQ Servo Combo for Composite Ranger
$694.00
$0.00( / )

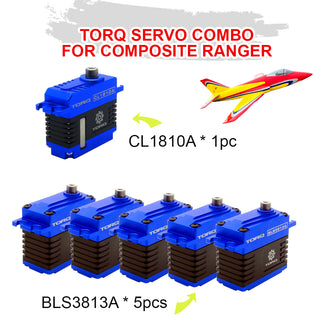

TORQ Servo Combo for Composite Ranger Experience unparalleled precision and power with the TORQ Servo Combo, designed specifically for J10 Jet enthusiasts. This combo includes 1pcs*TORQ CL1810A servo and 5pcs*TORQ BLS3813A servos, ensuring optimal performance for your high-speed jet. 1. TORQ BLS3813A Brushless High Torque Metal Gear Digital Servo (5pcs)...
TORQ Servo Combo for Composite Ranger
Experience unparalleled precision and power with the TORQ Servo Combo, designed specifically for J10 Jet enthusiasts. This combo includes 1pcs*TORQ CL1810A servo and 5pcs*TORQ BLS3813A servos, ensuring optimal performance for your high-speed jet.
1. TORQ BLS3813A Brushless High Torque Metal Gear Digital Servo (5pcs)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Torque: 30Kg.cm@6.0V / 38Kg.cm@7.4V / 43Kg.cm@8.4V
Speed: 0.15sec/60°@6.0V / 0.13sec/60°@7.4V / 0.12sec/60°@8.4V
Signal: 900-2100Hz
Motor Type: Brushless
Gear Type: Metal
Operating Temperature: -20℃~55℃
Size: 40.5*20*38mm
2. TORQ CL1810A Coreless High Torque Metal Gear Digital Servo (1pcs)
Case Material: Aluminum Alloy
Motor Type: Coreless
Gear Set Material: Phosphor Bronze + Hardened Steel
Position Sensor: Potentionmeter
Dimension: 35.5x15x32.5mm
Weight: 42g
Operation Voltage(rated): 7.4V
Operation Voltage Range: DC 6.0V - 8.4V
Torque: 15Kg.cm@6.0V, 18Kg.cm@7.4V, 20Kg.cm@8.4V
Speed: 0.14sec/60°@6.0V, 0.12sec/60°@7.4V, 0.10sec/60°@8.4V
Travel Angle: ±50° when 1000-2000us
Operating Temperature Range: -10℃ ~ +65℃
Motor Type: Coreless
Gear Set Material: Phosphor Bronze + Hardened Steel
Position Sensor: Potentionmeter
Dimension: 35.5x15x32.5mm
Weight: 42g
Operation Voltage(rated): 7.4V
Operation Voltage Range: DC 6.0V - 8.4V
Torque: 15Kg.cm@6.0V, 18Kg.cm@7.4V, 20Kg.cm@8.4V
Speed: 0.14sec/60°@6.0V, 0.12sec/60°@7.4V, 0.10sec/60°@8.4V
Travel Angle: ±50° when 1000-2000us
Operating Temperature Range: -10℃ ~ +65℃
