Xpert Servo Horn (25T)
){kind=link}

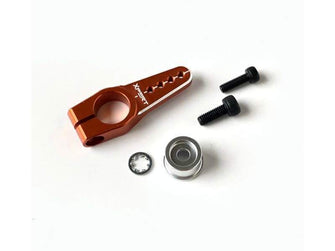

This is Xpert aluminum 25T clamping servo horn.
- Clamp design
- 3.00mm thickness arm
- The servo horn can be installed either side for different height requirement application.
- 33.50mm overall length
- 11/14/17/20mm hole spacing (measured from output shaft screw hole, to linkage rod holes, center to center)
- 25T spline Xpert output shaft
| Type: | |
|---|---|
| Vendor: | |
| Weight: |
0.0 lb |
Customer Reviews
works great
great product
fast shipping
Easiest setup ever,never buying another solid horn again for my heli.

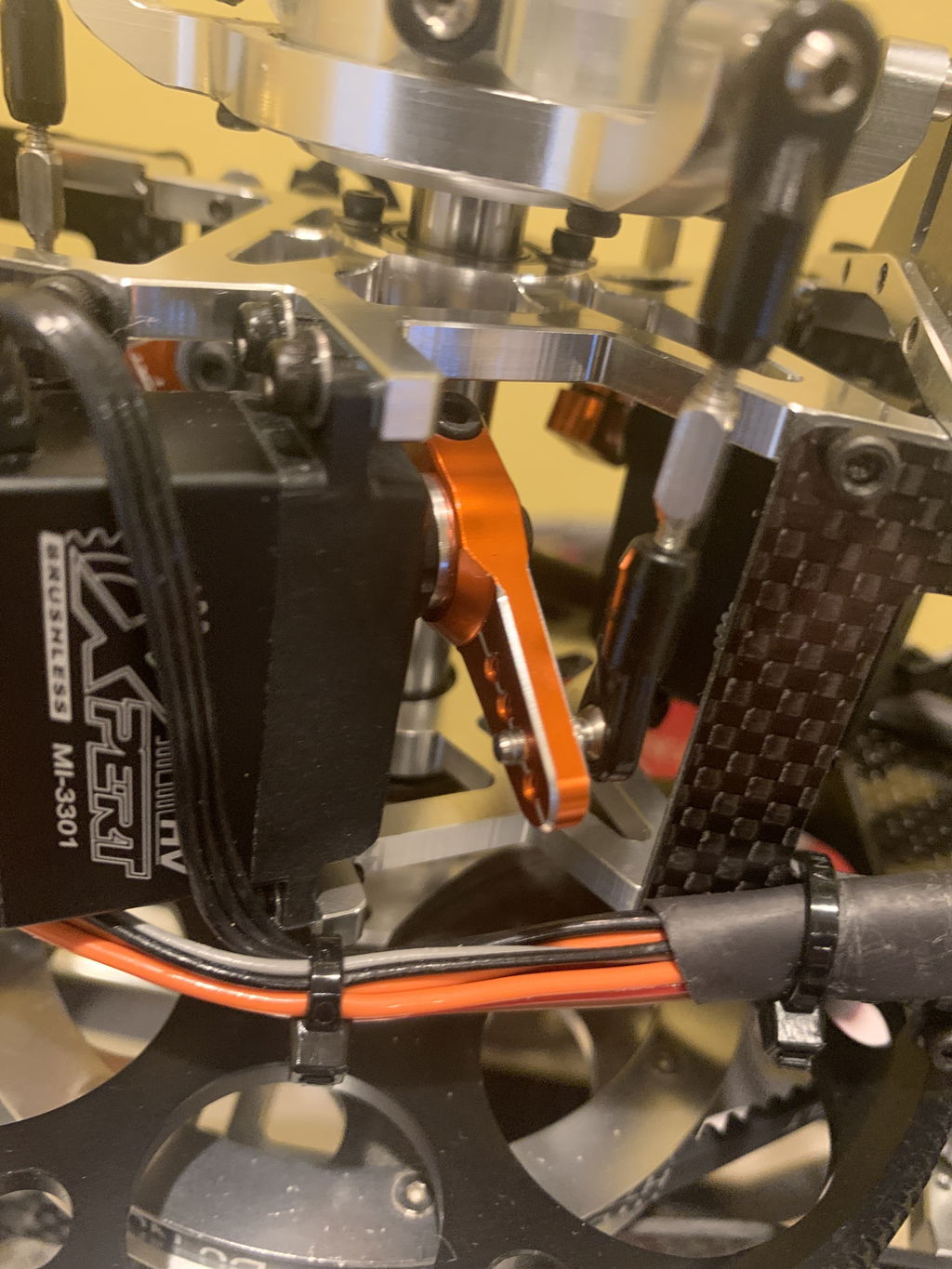

It speeds up the swash leveling process so much. Put the swash leveler on and tighten down set screws. No fiddling in the FBL unit to try and level swash.
Where were these servo arms years ago when I got into the hobby? These make setup and swash leveling so much easier. No more fiddling with trims. Just make sure your swash links are all the same length. I will be purchasing these with any new heli build I do. Well worth the money for the ease of use and time savings during swash setup.
These arms work with any 25T servo, they make leveling the swashplate perfect every time. Screw the adapter plate to your servo, connect the swashplate to the servo arms and place them on the servos, hold the swashplate tight to the leveling tool make sure the arms are fully seated and tighten the arm to the servo. Done no more tedious electronic leveling. They hold tight and work great.
The XPERT Horn offset makes for a perfect install and setup every time. Have them on all my copters. Maybe that why theyβre always SOLD OUT? Just a great product.
These are simply the easiest servo horns to adjust.
These Expert servo arms make setup easy, I have used them on two helis now and use them on everything from now on. Awesome product at a reasonable price!
These make cyclic servo setup without subtrim possible.
