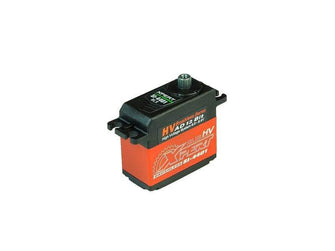

XPERT SI-4401-HV Standard Servo

Product Description

This is the Xpert RC SI-4401-HV High Voltage (6.0V~8.4V), Standard Size, High Strength Metal Gear, Digital Servo.

Features & Specifications

• Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
• 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
• Light weight design
• Aluminum middle case for optimized thermal dissipation.
• Strong Metal Gear
• Glitch-free
• Sophisticated error correction
• High-Speed, High-precision 12-bit AD converter and CPU calculation
• Fail safe
• Over current protection
• Over temperature protection
• Start sonorant
• ---------------------------------------------------------------------------

  • Dimensions: 40x37.80x20 mm
  • Weight: 62.50 g
  • Speed:
    • @6.0V: .111sec/60
    • @7.4V: .090 sec/60
    • @8.4V: .079 sec/60
  • Torque:
    • @6.0V: 13.43 kg-cm (186.41 oz-in)
    • @7.4V: 16.56 kg-cm (229.85 oz-in)
    • @8.4V: 18.80 kg-cm (260.94 oz-in)
  • Matching Gear replacement: XG72320
